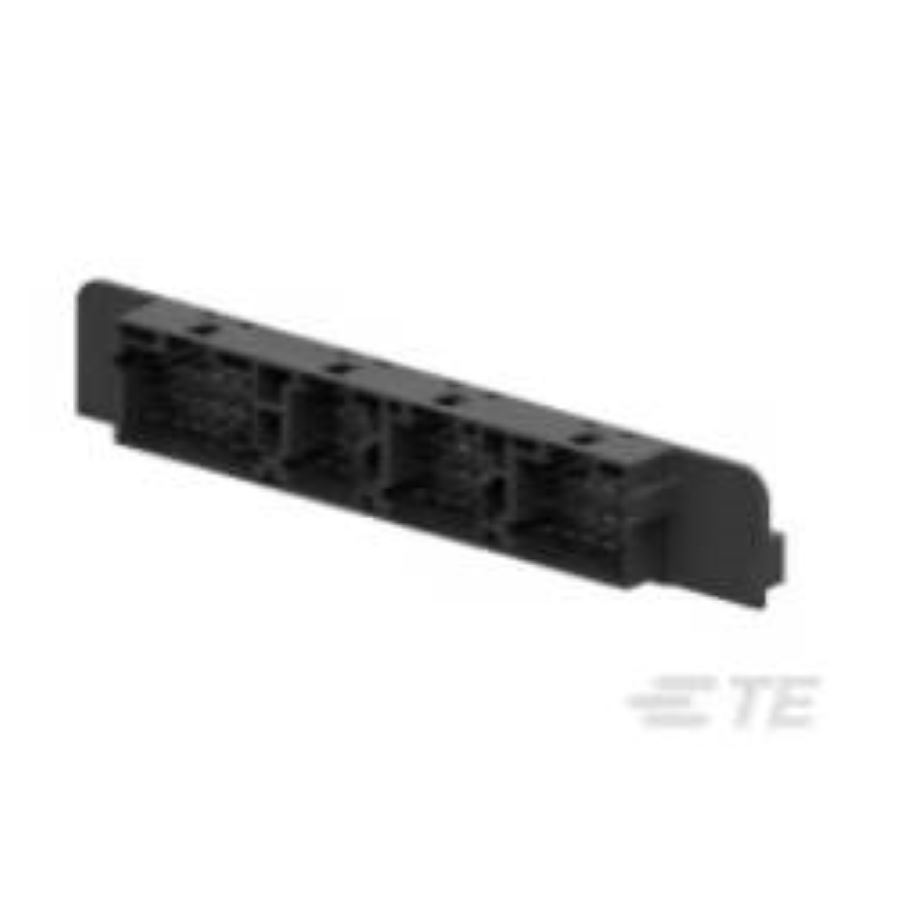

1318750-2
Manufacturer:
TE Connectivity
Mfr.Part #:
1318750-2
Datasheet:
Description:
Automotive Connectors Through Hole Number of Positions:50 Plug (Male)
| Parameter | Value |
|---|---|
| Length | 33.4 mm |
| Width | 56.4896 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -22 °C |
| Depth | 33.4 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3.9878 mm |
| Max Voltage Rating (DC) | 12 V |
| Flammability Rating | UL94HB |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Natural |
| Shielding | Unshielded |
| Number of Contacts | 50 |
| ELV | Compliant |
| Tab Width | 635 µm |
| Connector Type | Male Pin, Receptacle |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Housing Material | Polybutylene |
| Housing Color | Natural |
| Contact Mating Length | 5.5118 mm |
| PCB Thickness | 1.6 mm |
| Tab Thickness | 640 µm |
| Number of Signal Positions | 50 |
| Gender | Plug (Male) |
| Voltage Rating | 12 V |
| Packaging | Tube |
Stock: 222
Distributors
pcbx
pcbxUnit Price$4.23606
Ext.Price$4.23606
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $4.23606 | $4.23606 |
| 10 | $3.95019 | $39.50190 |
| 25 | $3.68361 | $92.09025 |
| 50 | $3.43502 | $171.75100 |
| 100 | $3.20320 | $320.32000 |
| 300 | $2.98703 | $896.10900 |
| 500 | $2.78545 | $1392.72500 |
| 1000 | $2.59753 | $2597.53000 |
